G-10 is a high-performance glass epoxy composite that has become indispensable across a wide range of industries due to its exceptional strength, durability, and resistance to environmental factors.

This fiberglass-based laminate combines lightweight construction with outstanding mechanical and electrical properties, making it a preferred material for applications ranging from electrical insulation to structural components in aerospace, marine, and consumer goods.

What is G-10?

G-10 is a composite material composed of woven fiberglass fabric impregnated with epoxy resin. The epoxy resin acts as a binder, curing under heat and pressure to create a rigid, durable material. This manufacturing process results in a laminate that is resistant to moisture, chemicals, and mechanical stress while maintaining a low weight.

G-10's non-conductive and non-corrosive properties make it particularly useful for applications in harsh environments or where electrical insulation is critical. Compared to other synthetic materials, such as phenolics or basic fiberglass, G-10 offers superior performance, including higher mechanical strength, better dimensional stability, and improved resistance to wear and degradation.

Key Properties of G-10

G-10 is renowned for its exceptional performance across a variety of demanding applications. Its strength, durability, and resistance to environmental factors make it a standout material for structural, electrical, and precision uses.

Below are the key properties that define G-10's versatility and reliability:

^{*Data is approximate and may be based on averages. Contact your local Piedmont Plastics sales representative for specific product specifications.}

How is G-10 Made?

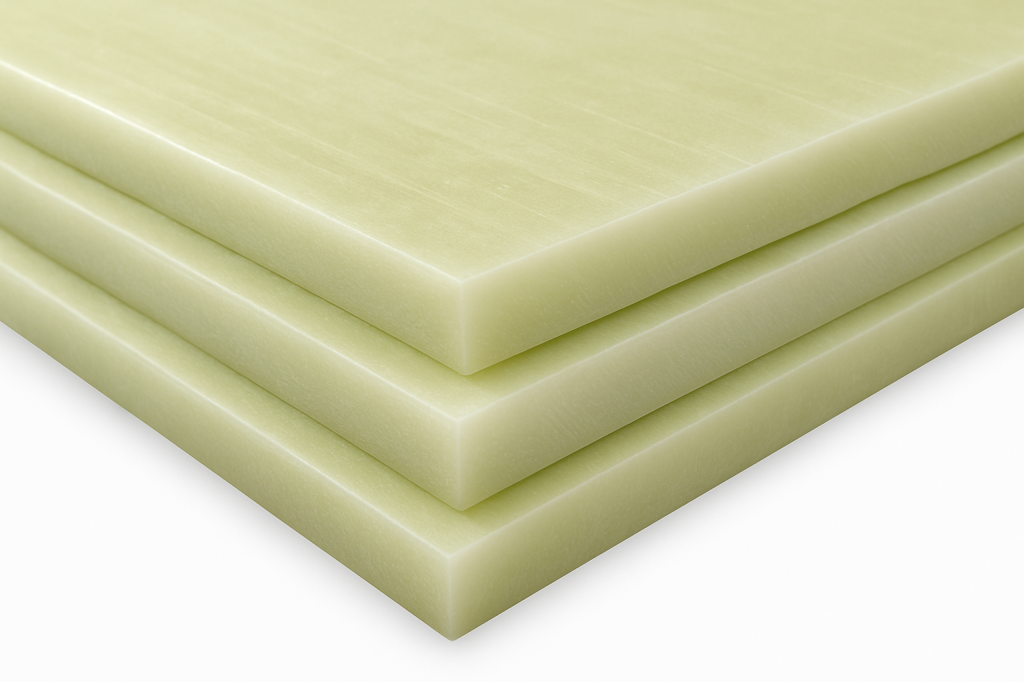

The production process of G-10 begins with the creation of prepreg, a pre-impregnated fiberglass fabric coated with a mixture of epoxy resin, fibers, and a hardener. This prepreg is then layered to the desired thickness and subjected to high heat and pressure, curing the resin and fusing the layers into a cohesive sheet.

The result is a rigid, dimensionally stable composite with consistent properties throughout its structure. The precise control of temperature and pressure during manufacturing ensures that G-10 exhibits minimal voids, exceptional uniformity, and excellent performance under stress.

Applications of G-10 Across Industries

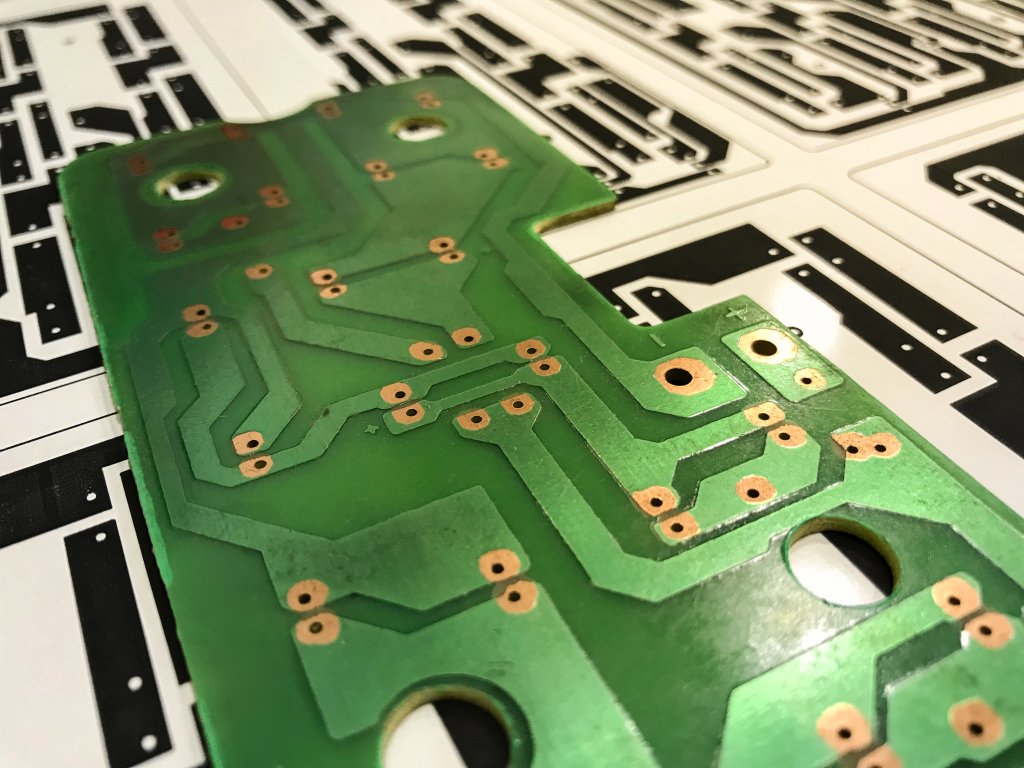

G-10’s versatility allows it to serve various industries and applications. In the electronics sector, it is a primary material for printed circuit boards (PCBs) and insulators due to its dielectric strength and resistance to electrical breakdown. High-voltage equipment such as transformers and switchgear also benefit from G-10’s insulating capabilities.

G-10’s lightweight construction, combined with its resistance to corrosion and mechanical stress, makes it invaluable in aerospace and marine applications. It is commonly used for structural panels, instrument housings, and electrical components. The material’s ability to withstand harsh environments ensures long-term reliability in these demanding fields.

G-10 is also a favored material in consumer goods manufacturing. Its strength, customizability, and resistance to wear and moisture make it ideal for high-use items. Additionally, its non-conductive and spark-resistant properties are essential in power generation and industrial settings, where safety and performance are very important.

Comparisons with Other Materials

G-10 stands out as a versatile material, offering a unique combination of strength, durability, and cost-effectiveness. While it shares similarities with other materials like FR4, metals, carbon fiber, and Micarta, G-10's specific advantages make it ideal for various applications:

Our Products

At Piedmont Plastics, we pride ourselves on offering a comprehensive range of G-10, industrial, and phenolic laminates tailored to meet the diverse needs of our customers. With their remarkable strength, impact resistance, and low water absorption, G-10 laminates are ideal for applications such as terminal boards, washers, sleeves, and structural components, especially in high-temperature and high-voltage settings.

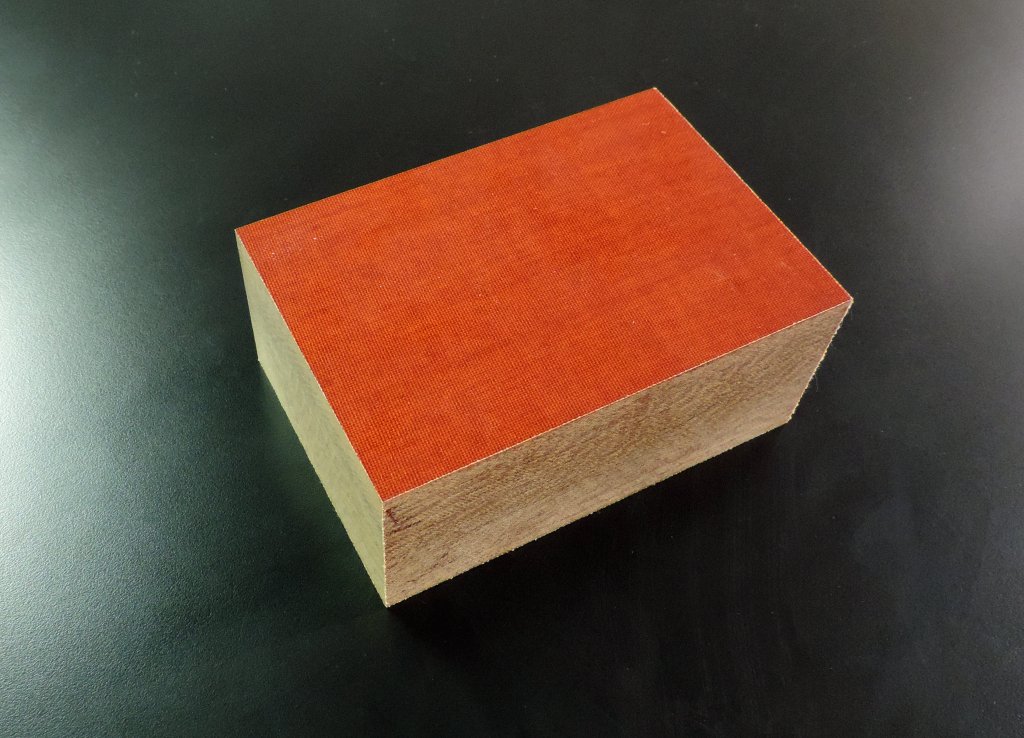

Alongside G-10, we provide an array of phenolic laminates, including X, XX, and XXX grades for economical and lightweight electrical uses and C and CE cotton phenolic for high-strength, machinable components. Our L and LE linen phenolic sheets are expertly engineered for precision parts requiring enhanced machinability and reduced noise.

Limitations of G-10

While G-10 is a versatile and high-performance material, it has drawbacks. Its production and machining can be more expensive than those of commonly used metals like aluminum.

Its rigidity and high fiber content can make machining challenging, requiring specialized tools and techniques to achieve precise cuts. For applications with continuous exposure to temperatures exceeding 140°C, G-10 may not be suitable, and alternative materials such as G11 offering improved thermal resistance may be necessary.

Customization and Flexibility

G-10’s adaptability is one of its standout features, making it suitable for various applications. Available in sheets, rods, and tubes, it can be precision-machined into intricate shapes with tight tolerances. Its aesthetic flexibility also enhances its appeal, particularly in consumer markets, where design and functionality go hand in hand.

Key advantages include:

• Versatile Forms: G-10 is available in sheets, rods, and tubes for various applications.

• Machinability: It can be shaped into complex components with precision and tight tolerances.

• Customizable Appearance: G-10 comes in various colors, patterns, and finish options to suit specific needs.

The Future of G-10

As industries evolve, the demand for materials that combine high performance with reliability continues to grow. Advances in resin technology and machining techniques are expected to expand the applications of G-10, particularly in emerging fields like renewable energy and robotics.

Its proven track record in established industries ensures that G-10 will remain a choice material for engineers and designers seeking dependable solutions.

Ready to Buy?

At Piedmont Plastics, we recognize the exceptional value G-10 brings to various industries. Its incomparable combination of strength, durability, and resistance to environmental factors makes it a reliable solution for applications such as electrical insulation, structural components, and high-performance consumer goods.
